oreXplorer
Spectral Evolution – NIR
Identify minerals in the field

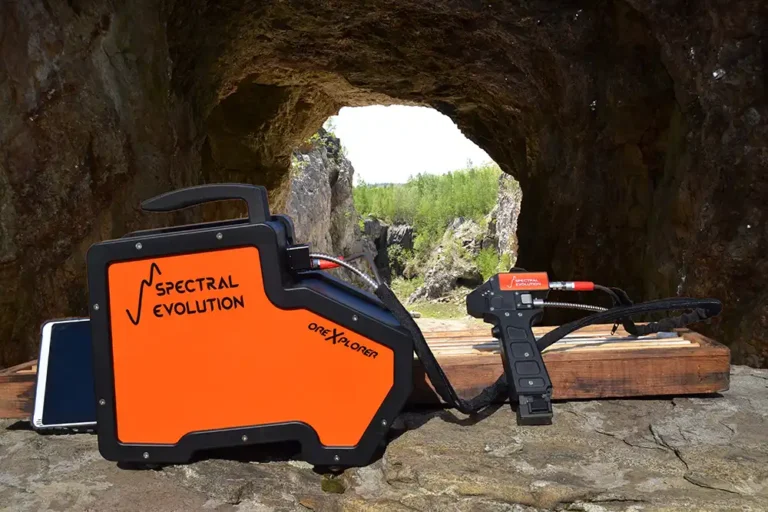

The oreXplorer is built specifically for demanding field conditions, featuring a durable housing, solid-state optical design with no moving parts, and a tough, metal-sheathed fiber-optic cable that can be easily replaced onsite.
Its streamlined operation includes single-button measurement with automatic dark-current correction and exposure adjustment.
The oreXplorer delivers higher resolution and sensitivity to identify hard-to-unmix minerals. An essential tool for vectoring purposes. The new industry standard for mineral analysis.
Available Accessory:
Specifications
Spectral Range | 350-2500nm |
Spectral Resolution | 2.7nm (350-1000nm) 5.5nm@1500nm 5.8nm@2100nm |
Spectral Sampling Bandwidth (nm) | Data output reported in 1nm increments 2151 channels reported |
Si Detector(s) | 1024 element Si Array (350-1000nm) |
InGaAs Detectors (TE-cooled) | 512 element extended wavelength array (1000-1630nm) 512 element extended wavelength array (1630-2500nm) |
Dimensions (in/mm) | 12.4in x 8.7in x 4.4in 315mm x 221mm x 112mm |
Weight (lbs/kg) | 13.5lbs (6.1kg) |
Communications Interface | USB, Wireless Connection |
Minimum Scan Speed | 100 milliseconds |
Wavelength Reproducibility (nm) | 0.1 nm |
Wavelength Accuracy (nm) | ±0.5 bandwidth |
Battery | External Lithium Ion | 7.4V |
Battery Operation | Minimum 3 hour operation |
Key Applications for oreXplorer

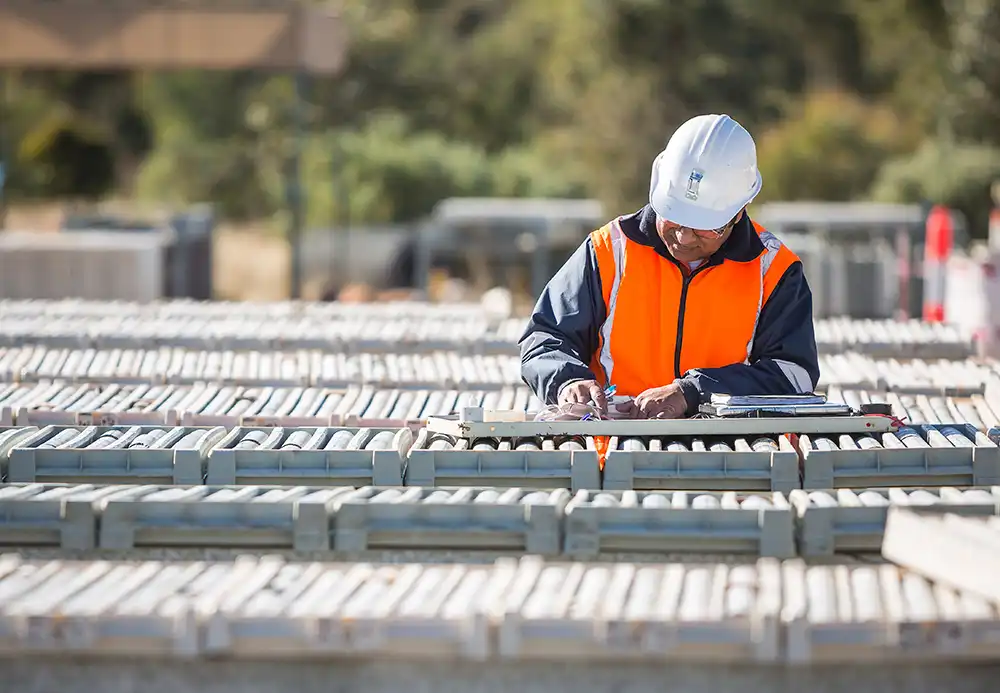

Mapping alteration zones / Vectoring to mineralization / Open-pit mapping / Analyzing outcrops, hand samples, and RC chips / Quickly analyzing drill core samples / Soil degradation, mapping, & monitoring
Speak to PAS for expert guidance about the Spectral Evolution oreXplorer.
oreXplorer features:
- 350-2500 nm spectral range
- 100% diode array optics with no moving parts
- Removable/replaceable fiber optic cable
- Rugged anodized aluminum construction
- Auto exposure & auto dark shutter
- Wireless connectivity
- High signal-to-noise ratio for better reflectance values
- Fast start-up and use, with no optimization step to start scanning or between scans
- Collect target data with a single click
- Lightweight lithium-ion battery for power in the field
