oreXpert
Spectral Evolution – NIR
Identify minerals in the field

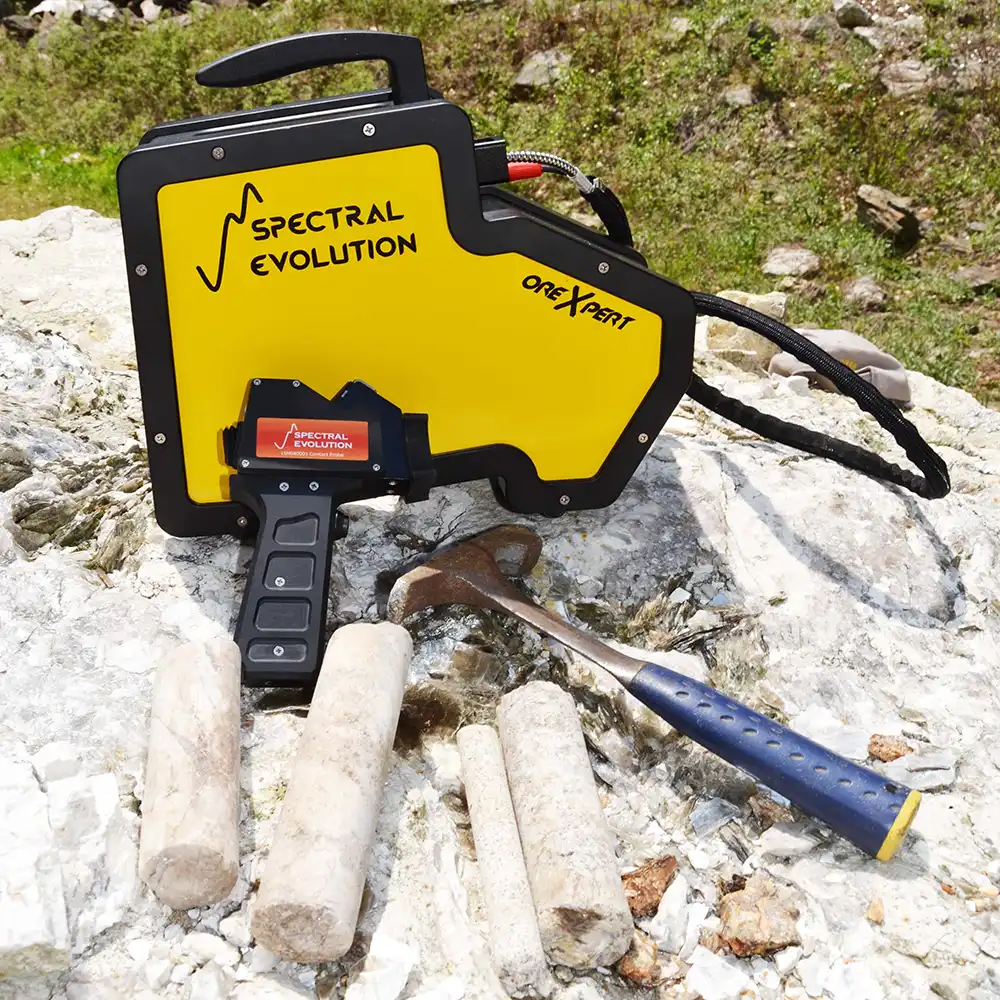

The oreXpert™ NIR field spectrometer is engineered to deliver exceptional resolution while standing up to the demanding conditions of fieldwork. Its advanced optics make it possible to detect subtle spectral features, improving mineral unmixing and the identification of trace components.
The instrument’s performance is anchored by three high-density, thermoelectrically cooled photodiode arrays, ensuring outstanding stability and ultra-high resolution in every measurement.
The oreXpert™ stands as the highest-resolution field spectrometer available, giving geologists the ability to separate overlapping spectral features and identify critical vectoring minerals in mixed samples.
Available Accessory:
Specifications
Spectral Range | 350-2500nm |
Spectral Resolution | 1.5nm (350-1000nm) 3nm@1500nm 3.8nm@2100nm |
Spectral Sampling Bandwidth (nm) | Data output reported in 1nm increments 2151 channels reported |
Si Detector(s) | 1024 element Si Array (350-1000nm) |
InGaAs Detectors (TE-cooled) | 512 element extended wavelength array (1000-1630nm) 512 element extended wavelength array (1630-2500nm) |
Dimensions (in/mm) | 12.4in x 8.7in x 4.4in 315mm x 221mm x 112mm |
Weight (lbs/kg) | 13.5lbs (6.1kg) |
Communications Interface | USB, Wireless Connection |
Minimum Scan Speed | 100 milliseconds |
Wavelength Reproducibility (nm) | 0.1 nm |
Wavelength Accuracy (nm) | ±0.5 bandwidth |
Battery Power | External Lithium Ion | 12V |
Battery Operation | Minimum 3 hour operation |
Key Applications for oreXpert
Mapping alteration zones / Vectoring to mineralization / Open-pit mapping / Analyzing outcrops, hand samples, and RC chips / Quickly analyzing drill core samples / Soil degradation, mapping, & monitoring
Speak to PAS for expert guidance about the Spectral Evolution oreXpert.
oreXpert features:
- 350-2500 nm spectral range
- 100% diode array optics with no moving parts
- Removable/replaceable fiber optic cable
- Rugged anodized aluminum construction
- Auto exposure & auto dark shutter
- Wireless connectivity
- High signal-to-noise ratio for better reflectance values
- Fast start-up and use, with no optimization step to start scanning or between scans
- Collect target data with a single click
- Lightweight lithium-ion battery for power in the field
